The Optoelectronics Behind Factory Automation

Factory automation is rapidly transforming industries worldwide, marking a new era of efficiency, precision, and innovation. As we advance deeper into Industry 4.0, the integration of advanced automation technologies has become a cornerstone of modern manufacturing. From automotive manufacturing to electronics assembly, these systems are key to enhancing productivity and reducing operational costs.

The key role of photoelectric sensors in automation

At the heart of this automated revolution are photoelectric sensors, which play a crucial role in enabling precise, safe, and reliable operations. Optical sensors, also known as optical switches, are indispensable in various industrial applications, such as presence detection, fill level measurement, and safety protection. In addition, they can offer relatively long operational distances for presence detection compared to other technologies, making them ideal for challenging environments.

Complex industrial mechanism, abstract background.

How optical switches work: configurations and applications

In the basic configuration, optical switches consist of a light emitter and a receiver. The emitter, usually a light- emitting diode (LED), produces modulated pulses, while the receiver, a photodiode, converts incoming light into electrical signals. These signals are then amplified and processed before being sent to the controller. The versatility of optical switches lies in their various configurations, each suited for specific applications in factory automation.

1.Transmissive configuration: long-range sensing

In the transmissive configuration, the transmitter and receiver are housed separately. When an object interrupts the light beam between them, the receiver’s output changes, indicating the presence of an object. This configuration is highly effective in environments with fog, dust, and dirt and is commonly used to monitor production and packaging lines, measure fill levels through transparent containers, and safeguard hazardous areas.

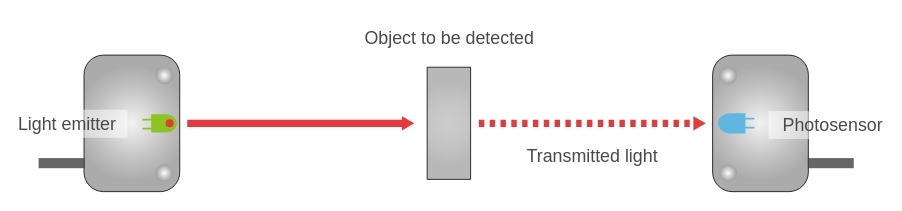

Figure 1: Transmissive Configuration

2.Retro-reflective configuration: detecting shiny objects

The retro-reflective configuration houses both the transmitter and receiver together. Objects are detected when they break the light beam between the sensor and a reflector. These sensors excel at sensing glossy or shiny objects, making them particularly useful in the packaging and printing industries.

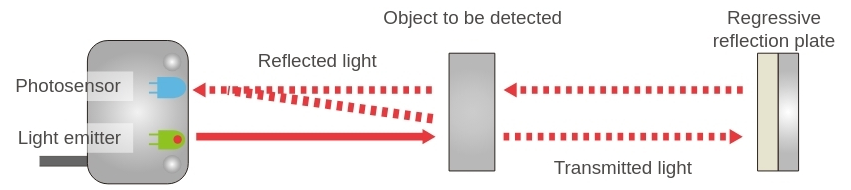

Figure 2: Retro-reflective configuration (also called regressive reflection)

3. Diffuse reflection configuration: versatility in object sizing

In the diffuse reflection configuration, the emitter and receiver are also housed together but without a reflector. Here, the sensor is triggered when the light reflected by an object reaches the photosensor. When a linear image sensor is used instead of a single photodiode, the distance to the object can be measured using triangulation. This method is particularly useful for determining the size of packages on a conveyor belt for sorting applications.

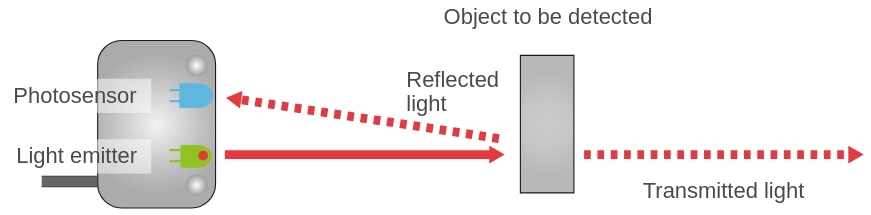

Figure 3: Diffuse reflection configuration

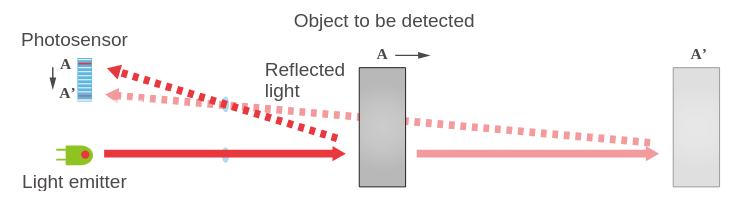

Figure 4: Triangulation distance measurement

4. Measuring light curtains: broad area detection

Measuring light curtains utilize infrared light to detect and measure objects across a large field. These devices operate using multiple through-beam sensors, each with an individually evaluated output signal. Available in various sizes and beam distances, they are suitable for diverse measurement tasks.

Hamamatsu Photonics: Leading the way in optical sensor integration

Hamamatsu Photonics offers a wide range of standard emitters and detectors specifically designed for integration into optical switches. Their integrated photoelectric detectors consist of highly sensitive photodiode and readout electronics that provide digital or analog output. With various packaging options and wide wavelength sensitivity, these detectors can easily integrate into any sensor system, making them compatible with most emitters on the market

Hamamatsu also manufactures a diverse range of emitters in the near-infrared (NIR) region. The light emitted by these LEDs is invisible to the human eye and resists interference from ambient light, ensuring precise and reliable performance. With different configurations available, including various beam angles, output power levels, and emission wavelengths, these LEDs can be tailored to meet specific application needs.

As industries continue to embrace factory automation, the significance of advanced photoelectric sensors becomes increasingly clear. Whether through transmissive, retro-reflective, or diffuse reflection configurations, these sensors are integral to achieving the high precision, safety, and efficiency that modern automated systems demand. Hamamatsu Photonics remains at the forefront of this technological evolution, providing a comprehensive suite of emitters and detectors designed for seamless integration into optical switches. With a commitment to quality and innovation, Hamamatsu continues to support the rapid advancement of factory automation, ensuring industries worldwide can operate at peak efficiency.
